Use ZAP with Flagger in Kubernetes

Flagger is a tool for deploying applications to Kubernetes cluster using safer patterns like Canary, Blue/Green, and A/B Testing deployments. When ZAP is integrated with the deployment process, it can scan the security of each new deployment. Furthermore, if a test suite of requests is used during the deploy, ZAP can utilize those requests for more informed attacks.

Prerequisites

This demo assumes a few things are already available

• A Kubernetes cluster
• Flagger installed and running in the Kubernetes cluster
• Helm CLI
• Kubectl

Set up the Kubernetes namespace

1. Create the zap-demo namespace where we will be deploying all of our resources to

   kubectl create namespace zap-demo


Install the Flagger Load Tester with Helm

I’ll be using the Flagger Load Tester to generate some traffic to a test service during deployments. I will also be using it to start ZAP off of a webhook. ZAP is currently not designed as a long running proxy. If you have alternate solutions for triggering Pods using webhooks, you can use that instead of the Flagger Load Tester.

1. Add the Flagger helm repository

   helm repo add flagger https://flagger.app


2. The Flagger Load Tester will need permission to create Jobs in the cluster, so we’ll install it with the option to set up a role for itself.

   helm install flagger-loadtester flagger/loadtester --namespace zap-demo --set rbac.create=true --set rbac.rules[0].apiGroups[0]="batch" --set "rbac.rules[0].resources={jobs,jobs/log,cronjobs,cronjobs/log}" --set "rbac.rules[0].verbs={get,create,list,watch}"


Deploy Testing Service

The podinfo container will be used as our application that Flagger will be coordinating for deployment.

1. Copy the podinfo Deployment and Service into a podinfo.yaml file and run kubectl apply -f podinfo.yaml

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: podinfo
     namespace: zap-demo
   spec:
     selector:
       matchLabels:
         app: podinfo
     template:
       metadata:
         labels:
           app: podinfo
       spec:
         containers:
         - name: podinfod
           image: ghcr.io/stefanprodan/podinfo:6.7.0
           ports:
           - name: http
             containerPort: 9898
             protocol: TCP
           command:
           - ./podinfo
           - --port=9898
           - --level=info
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: podinfo
     namespace: zap-demo
   spec:
     type: ClusterIP
     selector:
       app: podinfo
     ports:
       - name: http
         port: 9898
         protocol: TCP
         targetPort: http


Deploy ZAP resources

Flagger will be triggering ZAP, but we need to set up the resources ahead of time.

1. Copy the following PersistentVolumeClaim, substituting the storageClassName value with an appropriate StorageClass on your cluster. Save as zap-pvc.yaml and apply with kubectl apply -f zap-pvc.yaml. This is where the ZAP reports will be saved. I’m saving mine to Azure Blob Storage, which is where I will be reading the report from.

   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     labels:
       app.kubernetes.io/name: zap
     name: zap-pvc
     namespace: zap-demo
   spec:
     accessModes:
     - ReadWriteOnce
     resources:
       requests:
         storage: 50Mi
     storageClassName: dynamic-slrs-blob-fuse


2. Create the following CronJob as zap.yaml and apply with kubectl apply -f zap.yaml. We are creating it suspended, so it will never run on the schedule, however we will be using it for Flagger to create the ZAP Job.

   apiVersion: batch/v1
   kind: CronJob
   metadata:
     name: zap
     namespace: zap-demo
   spec:
     schedule: "* * * * *"
     suspend: true
     jobTemplate:
       spec:
         backoffLimit: 0
         template:
           metadata:
             labels:
               app.kubernetes.io/name: zap
           spec:
             containers:
             - args:
               - ./zap.sh
               - -cmd
               - -autorun
               - /zap/config/af-plan.yaml
               - -host
               - 0.0.0.0
               - -config
               - api.disablekey=true
               - -config
               - api.addrs.addr.name=.*
               - -config
               - api.addrs.addr.regex=true
               image: ghcr.io/zaproxy/zaproxy:stable
               name: zaproxy
               ports:
               - containerPort: 8080
                 name: zaproxy
                 protocol: TCP
               startupProbe:
                 failureThreshold: 3
                 httpGet:
                   path: /
                   port: 8080
                   scheme: HTTP
                 initialDelaySeconds: 60
                 periodSeconds: 10
                 successThreshold: 1
                 timeoutSeconds: 3
               volumeMounts:
               - mountPath: /zap/config
                 name: config
               - mountPath: /zap/reports
                 name: pvc
             restartPolicy: Never
             volumes:
             - name: config
               configMap:
                 name: zap-config
             - name: pvc
               persistentVolumeClaim:
                 claimName: zap-pvc


   • Note: ZAP’s authentication features are being disabled to make this demo straightforward.
3. Create the following Service as zap-service.yaml and apply with kubectl apply -f zap-service.yaml

   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app.kubernetes.io/name: zap
     name: zap
     namespace: zap-demo
   spec:
     ports:
     - name: zaproxy
       port: 8080
       protocol: TCP
       targetPort: 8080
     selector:
       app.kubernetes.io/name: zap


Create ZAP Automation Plan

The ZAP Automation Plan is created as a ConfigMap which then Kubernetes attaches as the af-plan.yaml file to the ZAP Pod.

1. Create the following ConfigMap as zap-config.yaml and apply with kubectl apply -f zap-config.yaml

   apiVersion: v1
   kind: ConfigMap
   metadata:
     labels:
       app.kubernetes.io/name: zap
     name: zap-config
     namespace: zap-demo
   data:
     af-plan.yaml: |
       env:
         contexts:
         - authentication:
             parameters: {}
             verification:
               method: response
               pollFrequency: 60
               pollUnits: requests
           excludePaths:
           - http://podinfo:9898/panic
           - http://podinfo:9898/status/10
           includePaths:
           - http://podinfo:9898.*
           name: Default Context
           sessionManagement:
             method: cookie
             parameters: {}
           technology:
             exclude: []
           urls:
           - http://podinfo:9898
         parameters:
           failOnError: false
           failOnWarning: false
           progressToStdout: true
         vars: {}
       jobs:
       - name: delay
         parameters:
           fileName: ""
           time: "600"
         type: delay
       - name: openapi
         parameters:
           apiUrl: http://podinfo:9898/swagger.json
           targetUrl: http://podinfo:9898
           context: Default Context
         type: openapi
       - name: activeScan
         parameters:
           context: Default Context
           maxAlertsPerRule: 0
           maxRuleDurationInMins: 0
           maxScanDurationInMins: 0
           policy: ""
           threadPerHost: 2
           user: ""
         policyDefinition:
           defaultStrength: medium
           defaultThreshold: medium
           rules: []
         type: activeScan
       - name: pdf-report
         parameters:
           reportDescription: ""
           reportDir: /zap/reports
           reportTitle: ZAP Scanning Report
           template: traditional-pdf
         risks:
         - info
         - low
         - medium
         - high
         confidences:
         - low
         - medium
         - high
         - confirmed
         sections:
         - instancecount
         - alertdetails
         - alertcount
         type: report
       - name: sarif-report
         parameters:
           template: sarif-json
           reportDir: /zap/reports
           reportTitle: ZAP Scanning Report
           reportDescription: ""
           displayReport: false
         risks:
         - low
         - medium
         - high
         confidences:
         - low
         - medium
         - high
         - confirmed
         sites: []
         type: report


   • af-plan.yaml is an Automation Plan that was generated using the ZAP GUI.
   • The context we are using is http://podinfo:9898 with everything http://podinfo:9898.* in scope with the exclusion of http://podinfo:9898/panic and http://podinfo:9898/status/10. (podinfo has some testing features that ZAP can trigger and disrupt the pod)

• The first job is a delay, this is so that Flagger can spin up ZAP when a deployment starts, but wait until the deployment is finished before triggering attacks. Attacks during the deployment process could potentially impact metrics and trigger a rollback.
• After the delay, ZAP inspects the OpenAPI spec and then uses it to attack podinfo.
• The results is then generated as a pdf report as well as a SARIF report.

Create the Flagger Canary

The Flagger Canary definition will provide the instructions that Flagger needs to know to perform a deployment. The one below is configured as a Blue/Green deployment.

1. Save the Canary as podinfo-canary.yaml and apply with kubectl apply -f podinfo-canary.yaml

   apiVersion: flagger.app/v1beta1
   kind: Canary
   metadata:
     name: podinfo
     namespace: zap-demo
   spec:
     provider: kubernetes
     targetRef:
       apiVersion: apps/v1
       kind: Deployment
       name: podinfo
     # the maximum time in seconds for the canary deployment
     # to make progress before it is rollback (default 600s)
     progressDeadlineSeconds: 600
     service:
       port: 9898
       targetPort: http
       portDiscovery: true
     skipAnalysis: false
     analysis:
       # schedule interval (default 60s)
       interval: 30s
       # max number of failed metric checks before rollback
       threshold: 2
       # total number of iterations
       iterations: 2
       webhooks:
       - name: start zap
         type: confirm-rollout
         url: http://flagger-loadtester.zap-demo/
         timeout: 3m
         metadata:
           type: bash
           cmd: "r=$RANDOM && kubectl create job -n zap-demo --from=cronjob/zap zap-job-${r} && kubectl wait --for=jsonpath='{.status.ready}'=1 -n zap-demo job/zap-job-${r} --timeout=2m"
       - name: load test
         url: http://flagger-loadtester.zap-demo/
         timeout: 5s
         metadata:
           cmd: "hey -z 1m -q 10 -c 2 http://podinfo-canary:9898/"
       - name: run zap
         type: post-rollout
         url: http://flagger-loadtester.zap-demo/
         timeout: 3m
         metadata:
           cmd: "curl http://zap:8080/JSON/automation/action/endDelayJob"


   • The Canary targets the podinfo deployment. It then takes control over the podinfo Service as well as creates a podinfo-canary and podinfo-primary service.
   • When a change to the podinfo deployment is detected, Flagger will first send a webhook to our flagger-loadtester service, with instructions for it to create the ZAP job, and then wait for the job to be ready.
   • After ZAP gets started up, the loadtester is given instructions to send over some traffic to the canary service, which sends traffic to the new deployment. Flagger looks at the metrics of that traffic to ensure it was successful before moving on.
   • After it’s done 2 iterations of the load test (as we’ve defined), Flagger spins up new pods with the new deployment configuration to replace the primary deployment.
   • After the rollout is completed, the flagger-loadtester is used once again for the webhook, which then instructs it to hit the endDelayJob endpoint on our ZAP deployment. Which will end the delay in the ZAP Automation Plan. (Flagger is not being used to hit the endDelayJob endpoint directly because it includes a payload with the content type of application/json)
   • Now that the Flagger rollout is complete, ZAP will begin to attack the new deployment.

Trigger A Deployment

1. Run the following command to update the podinfo image

   kubectl set image deployment -n zap-demo podinfo podinfod=ghcr.io/stefanprodan/podinfo:6.7.1

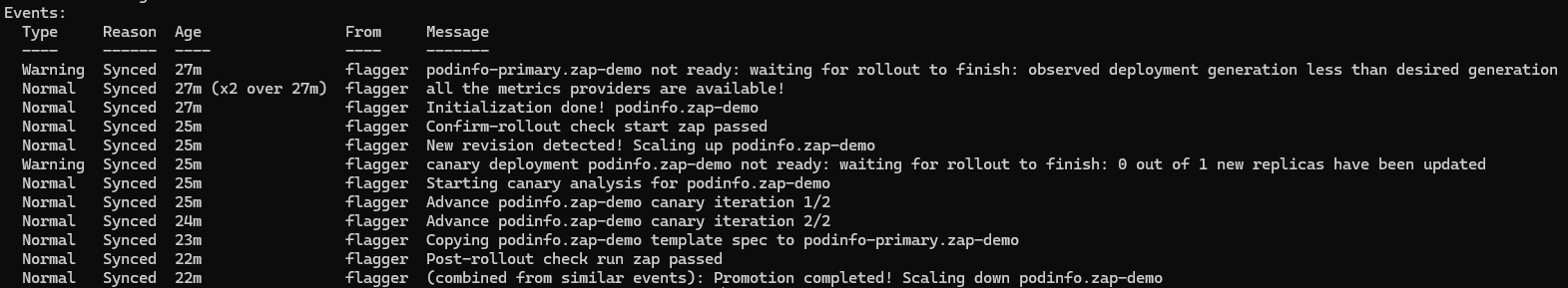

2. Check on the Canary in order to get the status of the deployment

   kubectl describe canary -n zap-demo podinfo




3. Once the canary is successful, monitor the ZAP job to see when it completes

   kubectl get job -n zap-demo

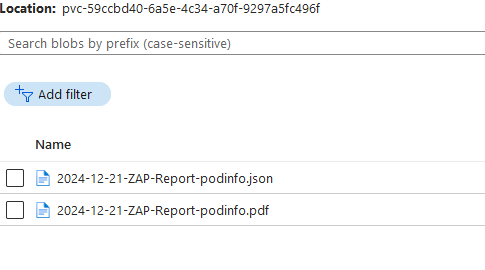

4. Once completed, the reports should be present in the volume

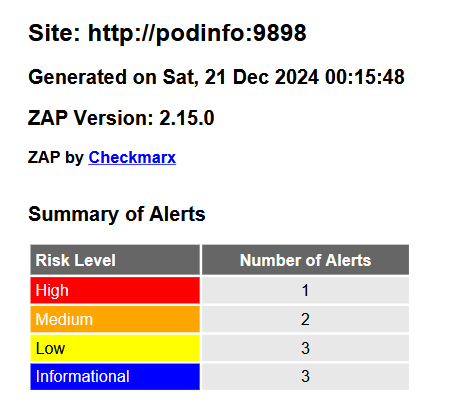

5. And ZAP has created some results



Proxy Requests Through ZAP

Integration and smoke tests can be run during Flagger’s deployment process when they are triggered off of a webhook. The requests from those tests can be proxied through ZAP and ZAP can use those endpoints and payloads to start its attacks using valid requests, giving ZAP the opportunity to find more vulnerabilities. The ZAP Automation Plan and the Canary definition can be updated to support this.

1. Update zap-config.yaml and apply with kubectl apply -f zap-config.yaml

   apiVersion: v1
   kind: ConfigMap
   metadata:
     labels:
       app.kubernetes.io/name: zap
     name: zap-config
     namespace: zap-demo
   data:
     af-plan.yaml: |
       env:
         contexts:
         - authentication:
             parameters: {}
             verification:
               method: response
               pollFrequency: 60
               pollUnits: requests
           excludePaths:
           - http://podinfo:9898/panic
           - http://podinfo:9898/status/10
           includePaths:
           - http://podinfo:9898.*
           - http://podinfo-canary:9898.*
           name: Default Context
           sessionManagement:
             method: cookie
             parameters: {}
           technology:
             exclude: []
           urls:
           - http://podinfo:9898
           - http://podinfo-canary:9898
         parameters:
           failOnError: true
           failOnWarning: false
           progressToStdout: true
         vars: {}
       jobs:
       - name: delay
         parameters:
           fileName: ""
           time: "600"
         type: delay
       - name: replacer
         rules:
         - description: podinfo
           matchRegex: false
           matchString: podinfo-canary:9898
           matchType: req_header_str
           replacementString: podinfo:9898
           tokenProcessing: false
           url: ""
         type: replacer
       - name: activeScan
         parameters:
           context: Default Context
           maxAlertsPerRule: 0
           maxRuleDurationInMins: 0
           maxScanDurationInMins: 0
           policy: ""
           threadPerHost: 2
           user: ""
         policyDefinition:
           defaultStrength: medium
           defaultThreshold: low
           rules: []
         type: activeScan
       - name: pdf-report
         parameters:
           reportDescription: ""
           reportDir: /zap/reports
           reportTitle: ZAP Scanning Report
           template: traditional-pdf
         risks:
         - info
         - low
         - medium
         - high
         confidences:
         - low
         - medium
         - high
         - confirmed
         sections:
         - instancecount
         - alertdetails
         - alertcount
         type: report
       - name: sarif-report
         parameters:
           template: sarif-json
           reportDir: /zap/reports
           reportTitle: ZAP Scanning Report
           reportDescription: ""
           displayReport: false
         risks:
         - low
         - medium
         - high
         confidences:
         - low
         - medium
         - high
         - confirmed
         sites: []
         type: report


   • podinfo-canary was added to be in scope since the requests will be proxied through ZAP using the canary host.
   • The replacer job changes the host header so that requests sent to podinfo-canary will be used to attack podinfo

2. Update podinfo-canary.yaml and apply with kubectl apply -f podinfo-canary.yaml

   apiVersion: flagger.app/v1beta1
   kind: Canary
   metadata:
     name: podinfo
     namespace: zap-demo
   spec:
     provider: kubernetes
     targetRef:
       apiVersion: apps/v1
       kind: Deployment
       name: podinfo
     # the maximum time in seconds for the canary deployment
     # to make progress before it is rollback (default 600s)
     progressDeadlineSeconds: 600
     service:
       port: 9898
       targetPort: http
       portDiscovery: true
     skipAnalysis: false
     analysis:
       # schedule interval (default 60s)
       interval: 30s
       # max number of failed metric checks before rollback
       threshold: 2
       # total number of iterations
       iterations: 2
       webhooks:
       - name: start zap
         type: confirm-rollout
         url: http://flagger-loadtester.zap-demo/
         timeout: 3m
         metadata:
           type: bash
           cmd: "r=$RANDOM && kubectl create job -n zap-demo --from=cronjob/zap zap-job-${r} && kubectl wait --for=jsonpath='{.status.ready}'=1 -n zap-demo job/zap-job-${r} --timeout=2m"
       - name: integration test
         type: pre-rollout
         url: http://flagger-loadtester.zap-demo/
         metadata:
           cmd: "curl --proxy http://zap:8080 http://podinfo-canary:9898/api/info"
         timeout: 3m
       - name: load test
         url: http://flagger-loadtester.zap-demo/
         timeout: 5s
         metadata:
           cmd: "hey -z 1m -q 10 -c 2 http://podinfo-canary:9898/"
       - name: run zap
         type: post-rollout
         url: http://flagger-loadtester.zap-demo/
         timeout: 3m
         metadata:
           cmd: "curl http://zap:8080/JSON/automation/action/endDelayJob"


   • Before the load test, an integration test was added. This is just a placeholder running a test suite. It’s using the flagger-loadtester for the webhook and giving it instructions to send a request to the podinfo-canary service, proxying the request through ZAP. If using a container with a test suite, the proxy server can often be set using the HTTP_PROXY environment variable.
   • The outcome of the defined webhooks is that the ZAP Job gets started up, then the integration test is ran on podinfo-canary while being proxied through ZAP. The load test then runs on the podinfo-canary, and when the rollout is complete, ZAP’s Automation Plan’s delay is ended and ZAP uses the requests to podinfo-canary to attack podinfo.

3. To see this in action, update the podinfo image back to the previous version

   kubectl set image deployment -n zap-demo podinfo podinfod=ghcr.io/stefanprodan/podinfo:6.7.0

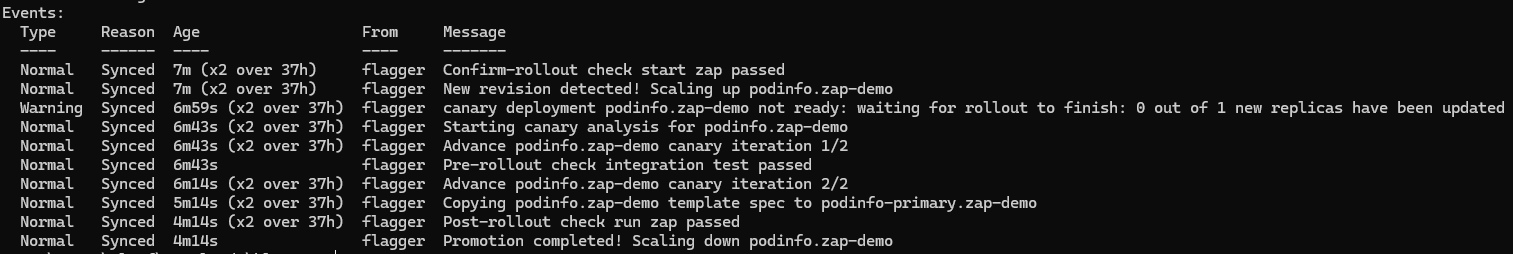

4. And check on the canary results

   kubectl describe canary -n zap-demo podinfo

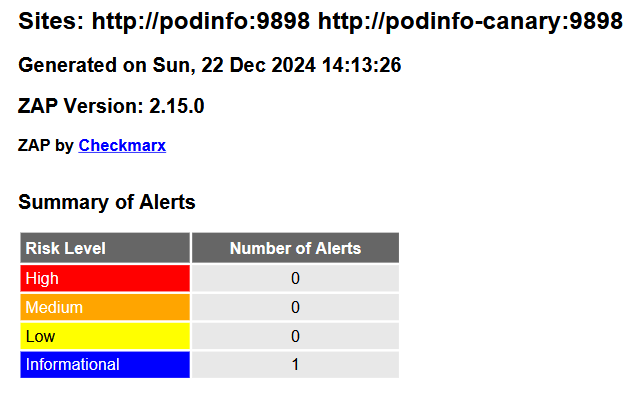

5. When ZAP finished, we can take a look at the report. Since we only had one endpoint in the test suite, there’s not much here.

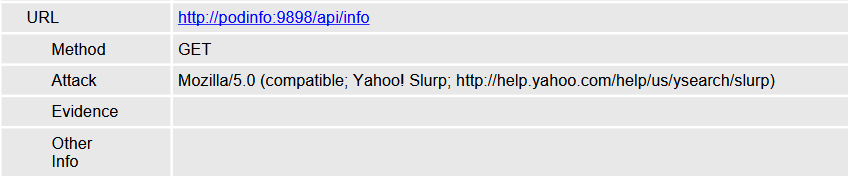

6. However, it does prove that it was able to attack podinfo with the podinfo-canary request we proxied through it.

Conclusion

ZAP can be integrated with Flagger in a Kubernetes cluster by triggering off a webhook. It can be used with OpenAPI specs to attack each new deployment, or requests from a test suite meant to test the canary service can be proxied through ZAP and used to attack the new deployment.
