Exploring APIs with ZAP

APIs can be challenging for security testing for a variety of reasons.
The first problem you will encounter is how to effectively explore an API - most APIs cannot be explored using browsing or standard spidering techniques.
However many APIs are described using technologies such as:

• SOAP
• OpenAPI / Swagger

These standards define the API endpoints and can be imported into ZAP using 2 optional add-ons.

Installing the add-ons

In order to import the API definitions you will need to add the relevant add-ons from the ZAP Marketplace.

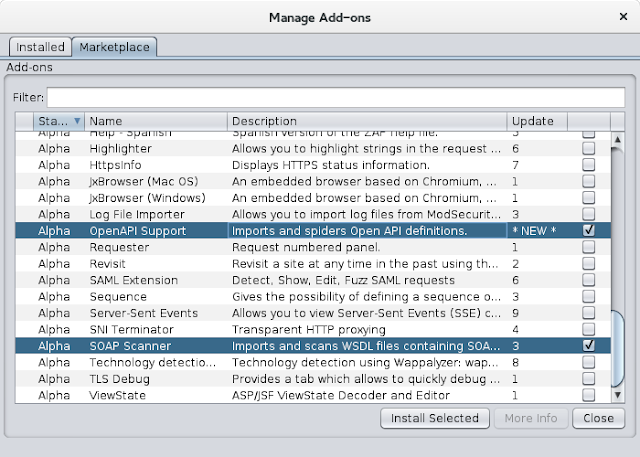

To do this via the UI:

1. Click on the ‘Manage Add-ons’ button
2. Select the ‘Marketplace’ tab
3. Click on the ‘Check for Updates’ button if no add-ons are shown
4. Select and install the add-ons: * OpenAPI Support * SOAP Scanner

To install them via the command line is even easier - just start ZAP with the command line flags: “-addoninstall soap -addoninstall openapi”
e.g.:

./zap.sh -addoninstall soap -addoninstall openapi

Importing via the UI

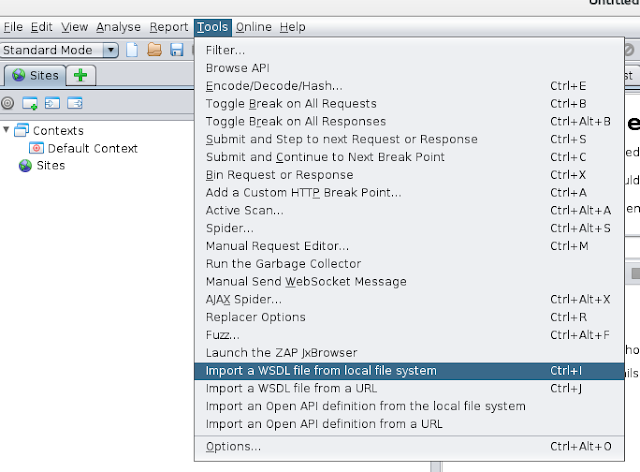

These add-ons add the following items under the ‘Tools’ menu:

• Import a WSDL file from local file system
• Import a WSDL file from a URL
• Import an OpenAPI definition from the local file system
• Import an OpenAPI definition from a URL

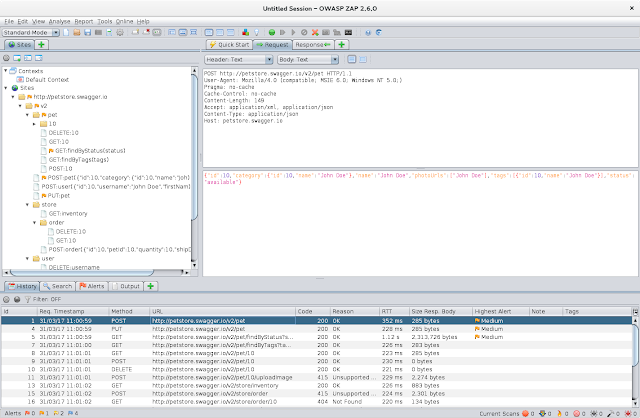

When the definitions have been imported they will be shown in the Sites tree:

Importing via the API

Both add-ons support importing API definitions from URLs and local files.

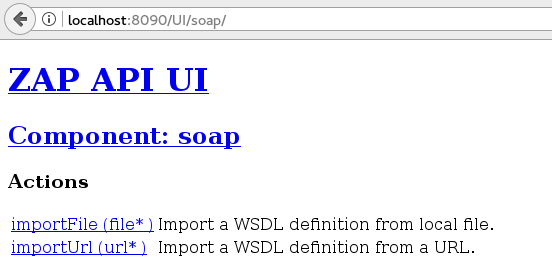

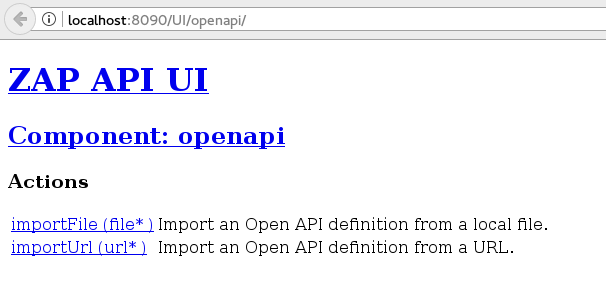

You can try these out via the API Web UI:

Map<String, String> map1 = new HashMap<>();
map1.put("file", "/home/user/openapi.json");
ApiResponse resp =
   api.callApi("openapi", "action", "importFile", p1);

Map<String, String> map2 = new HashMap<>();
 map2.put("url", "https://localhost/openapi.json")
ApiResponse resp =
   api.callApi("openapi", "action", "importUrl", p2);

Map<String, String> map3 = new HashMap<>();
map3.put("file", "/home/user/soap.xml");
ApiResponse resp =
   api.callApi("soap", "action", "importFile", p3);

Map<String, String> map4 = new HashMap<>();
map4.put("url", "https://localhost/soap.xml");
ApiResponse resp =
   api.callApi("soap", "action", "importUrl", p4);

Using the Python API client this can be done with calls like:

print zap._request(
  zap.base + 'openapi/action/importFile/',
  {'file':'/home/user/openapi.json'})

print zap._request(
  zap.base + 'openapi/action/importUrl/',
  {'url':'https://localhost/openapi.json'})

print zap._request(
  zap.base + 'soap/action/importFile/',
  {'file':'/home/user/soap.xml'})

print zap._request(
  zap.base + 'soap/action/importUrl/',
  {'url':'https://localhost/soap.xml'})

Spidering

Both of the add-ons automatically detect the relevant API definition file while spidering and will explore the definitions as long as they are in scope.
This means that you can explore an API by spidering from the URL of the definition as long as it is on the same domain as the API.

Next steps

Once you have added your API to the Sites tree using any of the above options you can then use any of the other ZAP components on the API, including the active scanner and fuzzer.

Note that the SOAP Scanner add-on also adds 2 additional scan rules that specifically target SOAP and XML URLs:

• Action Spoofing : https://www.ws-attacks.org/index.php/SOAPAction_Spoofing
• XML Injection : https://www.ws-attacks.org/index.php/XML_Injection
